P-pan Posted April 23, 2013 Posted April 23, 2013 (edited) För att det ska låta bättre på jobbet... Edited May 26, 2013 by P-pan Quote
calm Posted April 24, 2013 Posted April 24, 2013 Svanå och Operan i skön förening! Detta blir spännande att följa Calm Quote

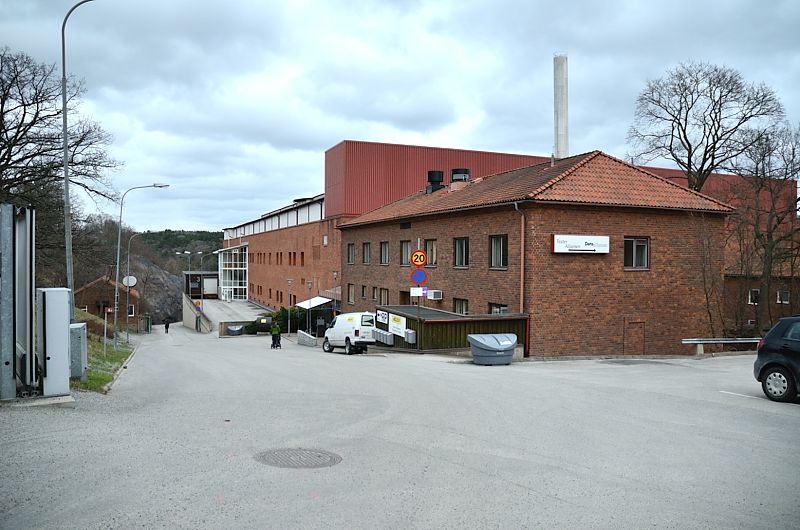

P-pan Posted April 25, 2013 Author Posted April 25, 2013 (edited) Opera och Dramatiska föreställningar måste ju sättas samman till en enhet och för detta ändamålet har Kungliga Dramaten och Operan en övningslokal förlagd en bit utanför Stockholms city. Närmare bestämt ute på Kvarnholmen i Nacka. Ett gammalt industriområde som en gång i tiden inrymde bl.a KF's kafferosteri är ju knappast något man förknippar med opera och andra mer storskaliga framträdanden inom teater och kultur. Men då det krävs rejält stora lokaler för både orkester och kulisser så blir det som det blir ibland. Kvällen var gråmulen och blåsig så det var bra drag i "seglen"... En betydande investering vad gäller akustik och ljudanläggning har utförts och då jag fick erbjudandet att följa med på en liten premiärvisning och lyssning, för fackfolk och andra inblandade i projektet, så tackade jag naturligtvis inte nej. (Det skulle ju bjudas på buffé, och gratis dessutom) ... Edit:Stavfel Edited May 3, 2013 by P-pan Quote

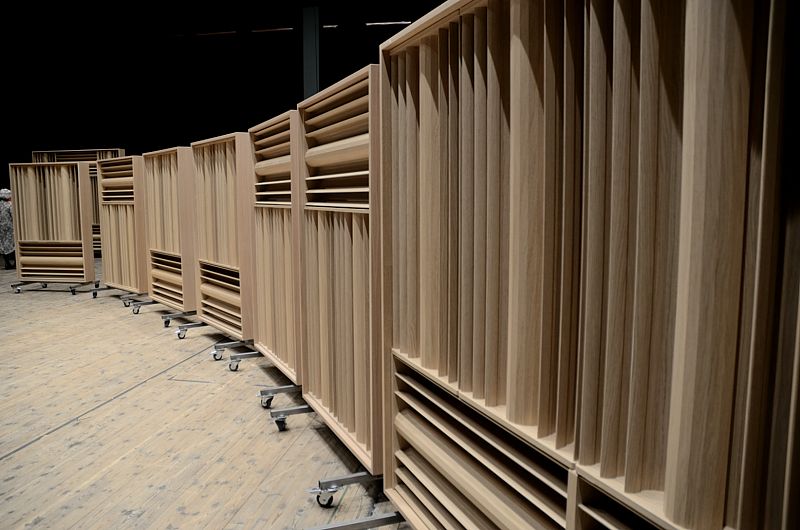

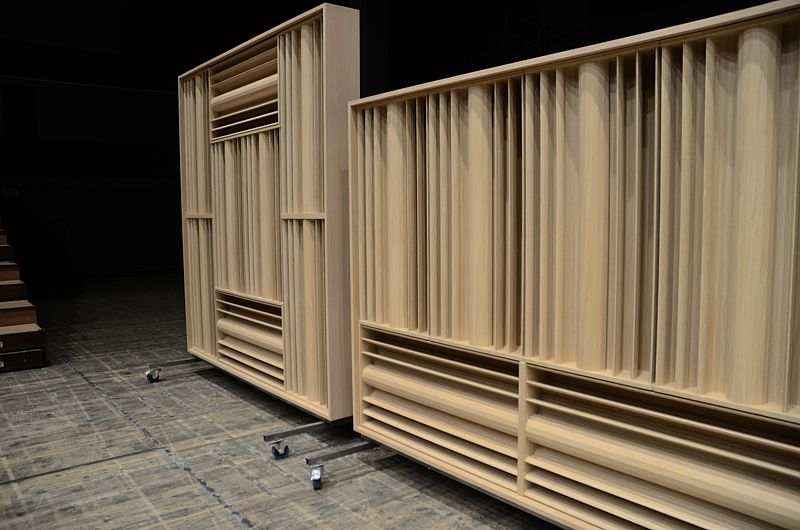

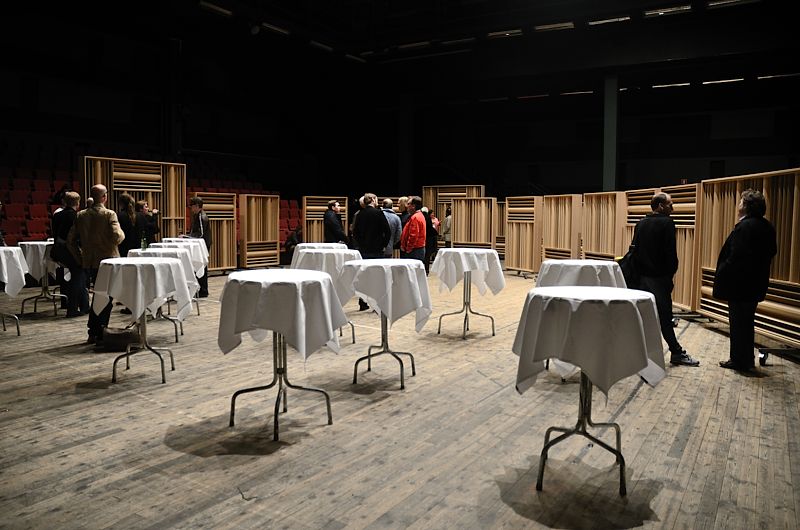

P-pan Posted April 27, 2013 Author Posted April 27, 2013 Att god mat är viktigt har man ju fått lära sig men hur gott det än kan vara med dessa kulinariska upplevelser så får man ju sig ibland något annat serverat som tilltalar en del andra viktiga sinnen... Svanås snickeri måste ha haft dagar för att klara den här leveransen. Om jag minns rätt så består dessa moduler, sammanräknat, av totalt 70 st S-Wingar... alla är dock inte med på bild. Dessutom skulle de monteras på rullstativ för en lite mer flexibel användning men kanske framför allt för att enkelt kunna rullas undan då lokalen används till annat än bara musikaliska övningar... som t.ex lite mingel Bättre akustisk samtalsmiljö än denna kan man säkert få leta efter. Det gäller dock att stå på rätt avstånd från panelerna Quote

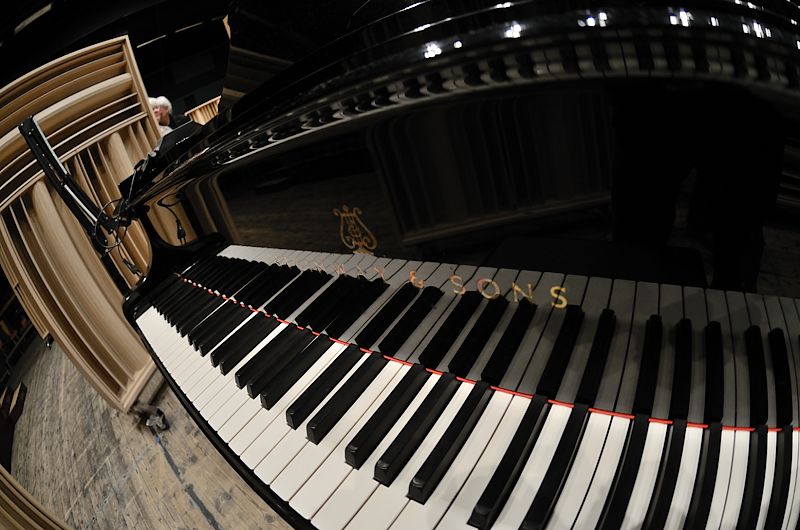

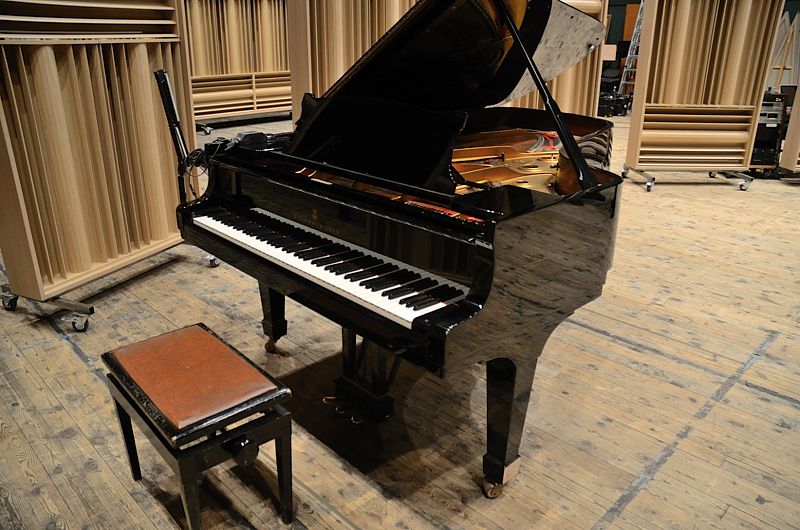

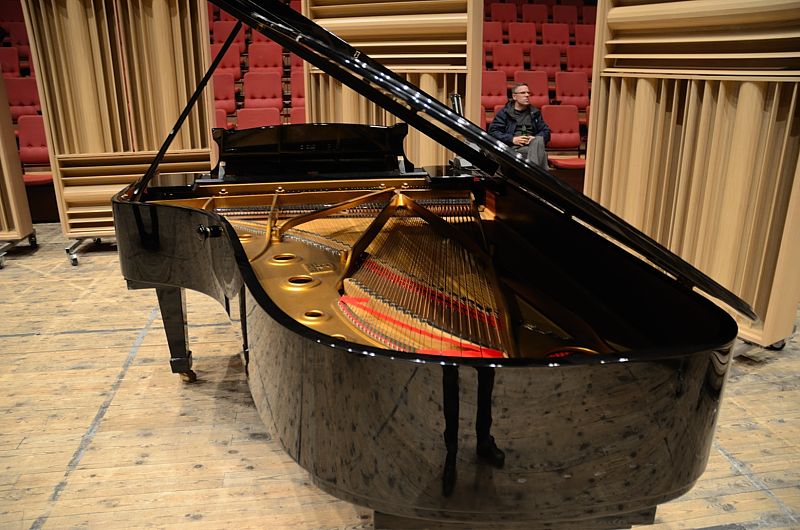

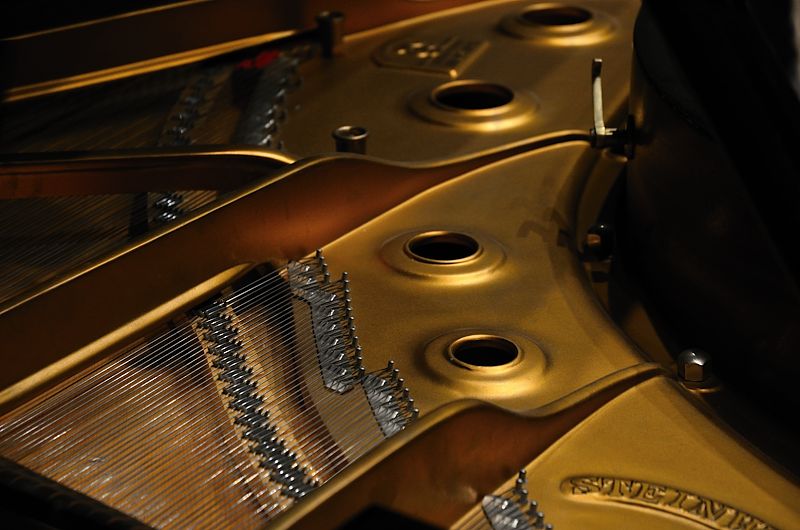

P-pan Posted May 3, 2013 Author Posted May 3, 2013 Det vankades lite live uppträdande ... eller... Det ser nästan ut som att fotografen behöver äta upp sig lite va ... Tänk att en flygel ska behöva innehålla så mycket prylar för att låta "lite" . Quote

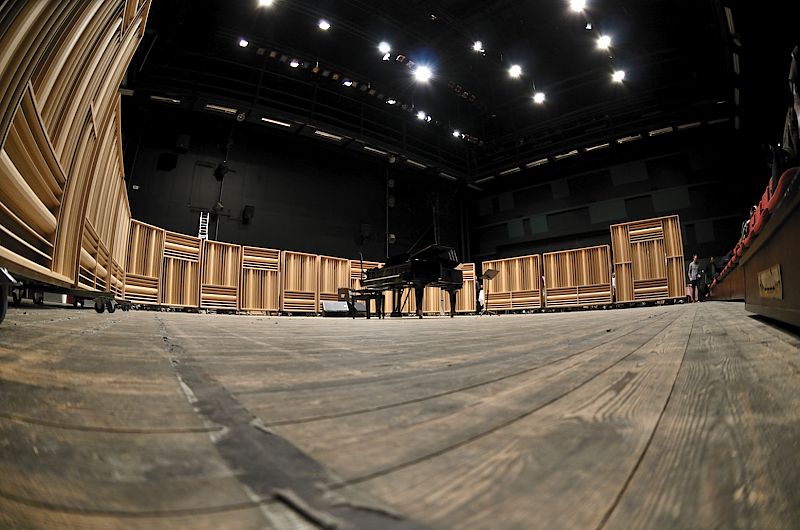

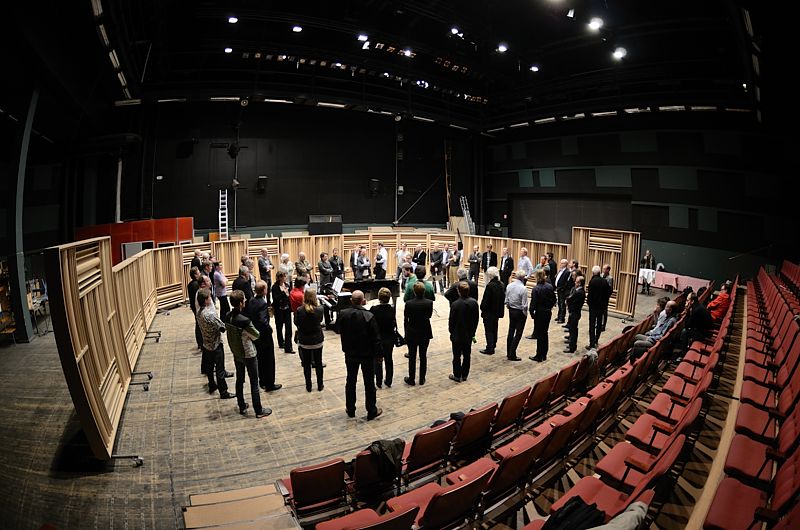

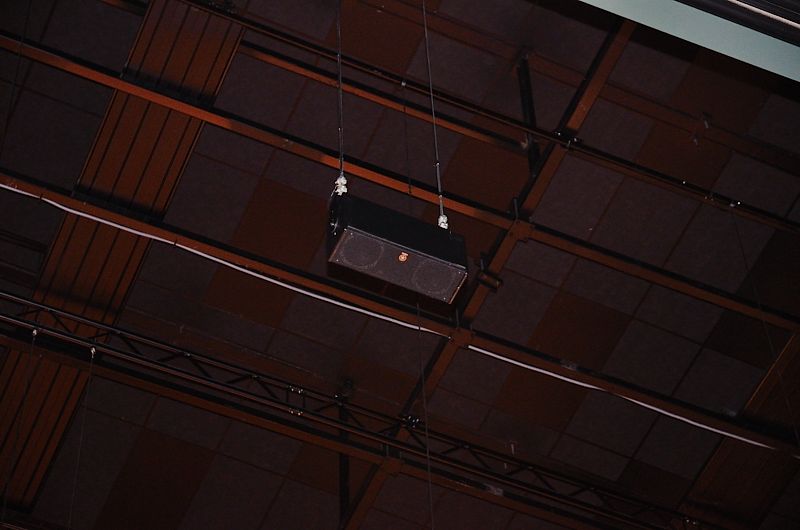

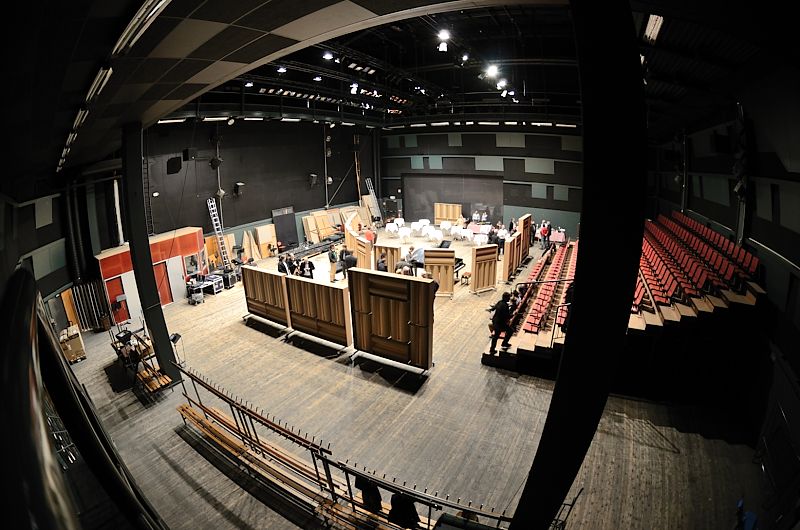

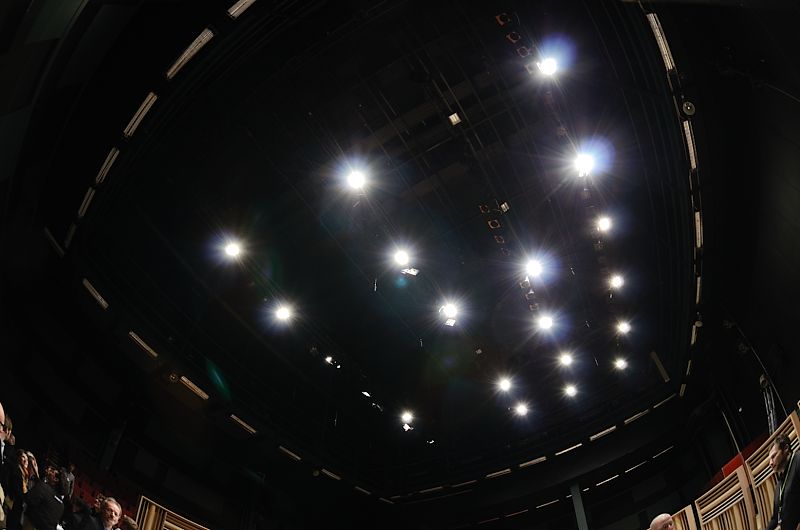

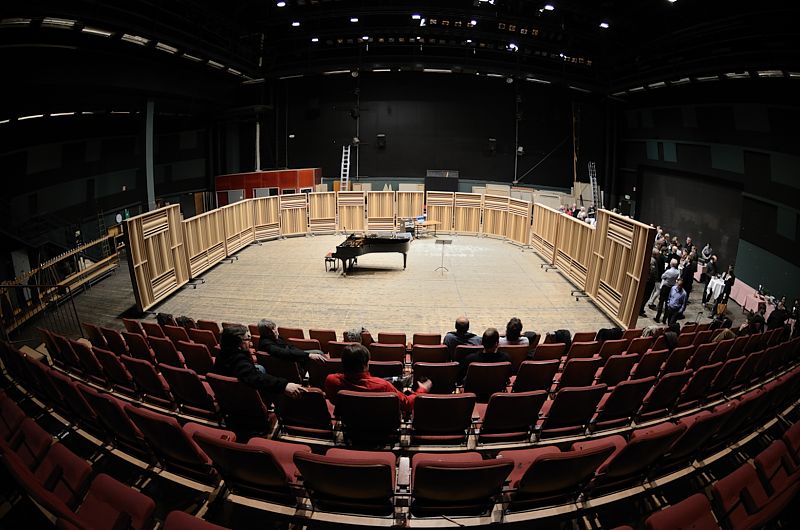

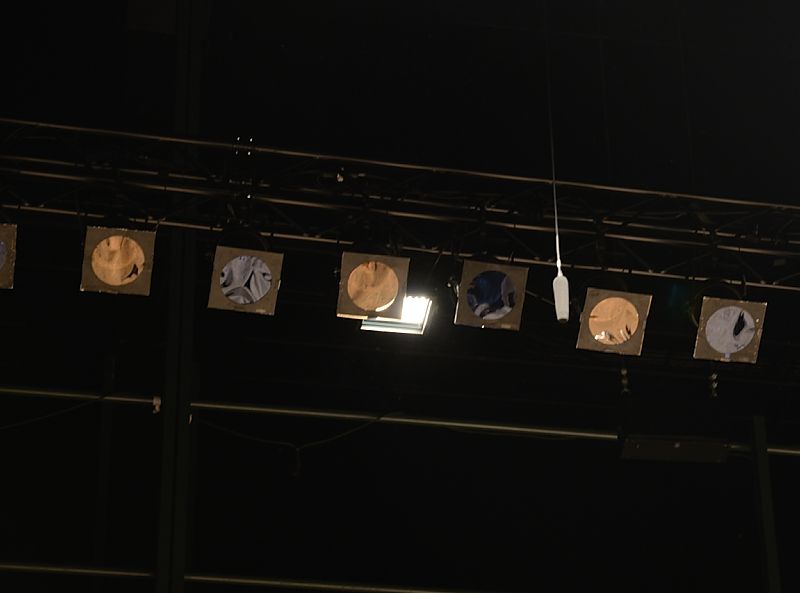

P-pan Posted May 11, 2013 Author Posted May 11, 2013 Då minglandet inte kändes som min grej passade jag på att smyga runt i lokalen för att hitta passande bildvinklar som lite bättre kunde visa hur enormt stor denna övningslokal egentligen är. Det är en ordentligt tilltagen takhöjd och någonstans där uppe bland lamporna finns det små finurligheter som i samspel med Svanås Wingar skulle visa sig vara en riktig vitaminboost för den från början rätt så dåliga akustik lokalen dragits med. Den gode Matts på Svanå Miljöteknik har fått baka både stora och små paneler till denna kungliga inrättning. Man kan ju undra om det möjligtvis kommer ett bladgulds beklätt alternativ framåt hösten Quote

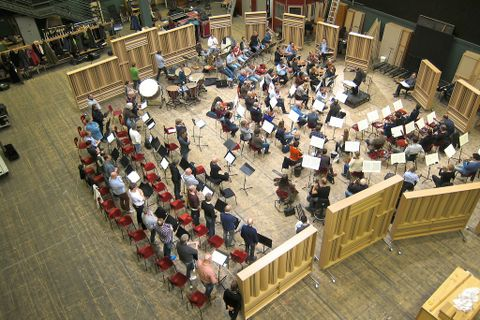

P-pan Posted May 19, 2013 Author Posted May 19, 2013 (edited) Så... märkte de någon skillnad? Jag gör svaret lätt för mig genom att citera följande uttalande från Lars-Göran Ehn, Kungliga Operans ljudingenjör. (hoppas eran engelska är lite bättre än min) SMT S-Wing and Yamaha AFC3 at the Rehearsal Stage of the Royal Swedish Opera by Lars-Göran Ehn The simple yet astonishing bottom line of the installation of SMT S-Wings in combination of the Yamaha AFC3-system at our rehearsal stage facility is that we turned a room that was considered pointless for our musicians to rehears in into a hall in which they now enjoy making music. In short: it used to be really bad, now it's really good. Working with an orchestra and singers at this level is rather critical when it comes to acoustics and we knew from the start that the demands of sonic quality would be very high. Moreover, involving microphones and loudspeakers for acoustics still meets a lot of scepticism, thus raising the demands of critical listening even higher in coming up with an electro-acoustical solution. It seems that the AFC is breaking new ground in that aspect with this success story. In our case I think the success sprung from a combination of the great attention to detail in the tuning process that was done by the experienced Yamaha-team lead by Mr Watanabe supported by the thorough knowledge of speaker system installation and tuning brought in by Audile Electroacoustics. All in combination with the custom designed portable diffusion panels based on the S-wing diffusers by SMT. Even though the acoustic situation for the rehearsals of the Royal Opera Orchestra was an urgent matter there was a lot more to consider when looking for solutions. The room is used daily for staging with the ability to set up most of the full scale sets if needed and in the coming year we will see a whole new use of the room by turning it into a black box style venue with the intention to make Opera without the natural restrictions set by the golden auditorium in the Opera House. Changing from musical rehearsal to show to staging should also be fast and possible for a small group of people to manage. The renowned Swedish acoustician Ingemar Ohlsson had done measurements and suggested a large hard ceiling covering the floor along with diffusion walls on the sides for greater stage support but the idea of suspending a solid hard ceiling did not go hand in hand with our plans of creating a modern style black box venue with lighting trusses and flexible set layouts of the room. Our solution had to be very flexible and quickly adjustable and, well, in certain situations it should even be possible to turn the acoustics off completely. Furthermore, anything suspended from the ceiling could not come further down than the 8,5 meters which is the maximum height of our set pieces. As I had recently heard of the newly developed S-wings from Swedish manufacturer SMT, also suggested by Ohlsson, I began thinking of some sort of portable solution with S-wings on wheels but I still was not sure how to keep hold of all the musical energy that literally went up into the absorbing ceiling over the grid at 17 meters height. It was at this point that I got news of Yamaha having thoughts of maybe bringing the AFC3 to the European market. They agreed on working with us in this development and the process was greatly enhanced by the fact that the certified AFC3 partner Audile is resident in Stockholm. The acoustic design solution we came up with is, in summary, based on early stage support by the SMT S-wings which, due to their wide frequency range diffusion with time delay and almost no absorption, creates a high degree of definition and direct communication in the early energy. Then the AFC adds later arriving early reflection support and the reverb tail. The regenerative process seems to glue it all together and the response is linear regardless of level and very even across the room. The S-wings create magic in the very early time range, I believe that this is key to the sonic impact of the complete system. We were able to move the panels really close to the musicians and the response was still very even. In the near field I get a feeling that they're acoustically invisible, in the far field the summing effect of the panels help keeping the the musical energy of our singers constant even if they move around in different directions in staged passages. Communication between sections of the orchestra is enhanced without losing direction and definition. We all held our breath when the orchestra played the first notes in their new acoustic environment but in very little time everyone had their complete concentration in the score. Playing was easy and communication between parts was much improved. In the evaluation with chief conductor Lawrence Rennes the main concern was not the quality of the acoustics but rather how to hold back the liveness of the room so that it would not be too different from our main stage, all without losing the great musical communication that we had made possible. It was a great joy. Lars-Göran Ehn Senior Sound Engineer Royal Swedish Opera Stockholm Som ni märker finns här också lite elektronisk hjälp från Yamaha och något som de kallar Active Field Control. jag saxar från deras hemsida... Active Field Control is an acoustic enhancement system that is used to improve or enhance the architectural acoustic characteristics of a room and optimize reverberation while preserving that room's natural acoustic 'signature'. Yamaha DSP technology enables us to realize this system with a small set of core devices. AFC adjusts acoustical conditions by using an acoustical feedback system which makes AFC different from, and superior to, other techniques that are based on the use of digital reverbs to simulate room characteristics. För er som vill förkovra er mer i AFC systemet kan jag rekommendera en titt HÄR Besökarna fick naturligtvis tillfälle att testa effekten av det hela både från läktaren... Och med lite mer "närvarokänsla" ... Edited May 19, 2013 by P-pan Quote
eliot Posted May 19, 2013 Posted May 19, 2013 (hoppas eran engelska är lite bättre än min) Det är ju "svengelska" så det går bra - Det är nog svårare för en engelsman Quote
P-pan Posted May 19, 2013 Author Posted May 19, 2013 Det är ju "svengelska" så det går bra Tur för mig att det inte var skrivet på "Svyska" för då hade jag varit helt lost Quote

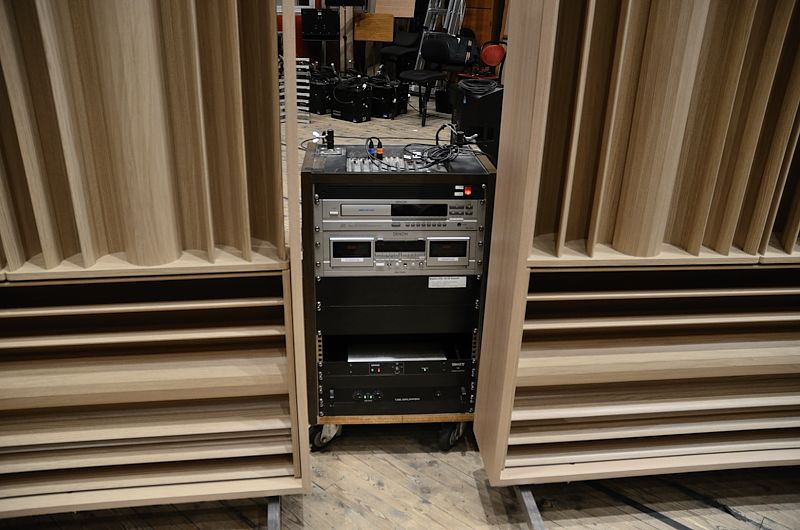

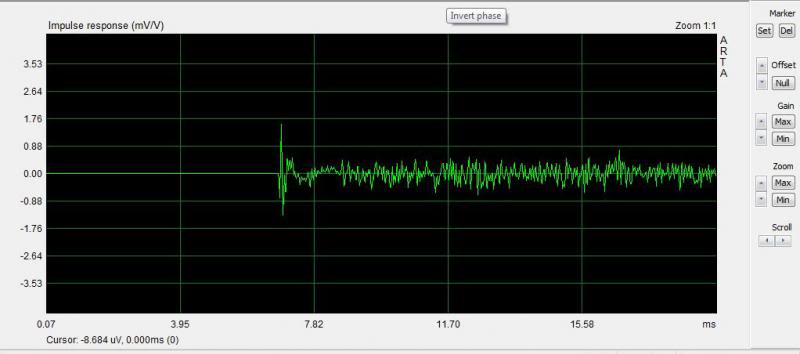

P-pan Posted May 25, 2013 Author Posted May 25, 2013 Denna lokal är Yamahas första stora projekt när det gäller AFC3 tekniken. Om jag förstod saken rätt finns det dock en risk för att ett problem med rundgång kan uppstå. Detta kan ju då i viss mån begränsa användningen av AFC tekniken. Mätningar/beräkningar gjorda av akustikern Ingmar Olsson visar att konceptet med Wingen var att föredra framför andra diffusorer, typ QRD, eftersom wingen jobbar bredbandigt i närfältet och skapar den fina "gräsmattan" av reflexer... Att wingen trollar bort sig själv rent akustiskt och skapar ett jämnt bredbandigt diffusfält bekräftades av både hojtande besökare och sedan tidigare gjorda tester av delar av orkestern och förvånade operasångare. Quote
P-pan Posted May 26, 2013 Author Posted May 26, 2013 Det var en mycket trevlig tillställning som inte bara innehöll musikaliska och akustiska inslag. Naturligtvis fanns här också trevligt sällskap... Lite god mat... T.o.m väldigt god mat... Och resan hem blev .... även den trevlig och lättsam ... Vill man besöka dessa lokaler så kan man alltid passa på i samband med att Unga På Operan visar något ur sin repertoar. Risken är väl dock att Wingmodulerna får stå tillbaka till förmån för kulisser och annan rekvisita. Musiken och rollprestationerna är säkert en upplevelse för många av ens sinnen Och till sist ett stort tack till... Matts Odemalm på Svanå Miljö Teknik, som såg till att jag kom innanför dörrarna. Lars-Göran Ehn från Kungliga Operan, som med fast beslutsamhet tar sina kollegors arbetsmiljö till en nyansrikare vardag. Själv så tar jag mina wingar och flyger vidare så... Tack och bock även från mig. Quote
